FortiGate 70F Next-Generation Firewall
Fortinet
Next-Generation Firewall (NGFW)
FG-70F

High-performance, fanless desktop Next-Generation Firewall (NGFW) designed for branch offices and mid-sized businesses. Delivers advanced security, SD-WAN, and networking features in a compact, energy-efficient form factor.

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation
Office Installation
Enterprise Setup
Technical Support

Installation Services for FortiGate 70F Next-Generation Firewall

Our expert team provides comprehensive installation services for this product across all environments

Home Installation
Professional installation services for residential environments, ensuring optimal performance for your home network.
Office Installation
Complete office network installation with advanced configuration, security, and performance optimization for business environments.
Enterprise Installation
Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.
Technical Support
Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

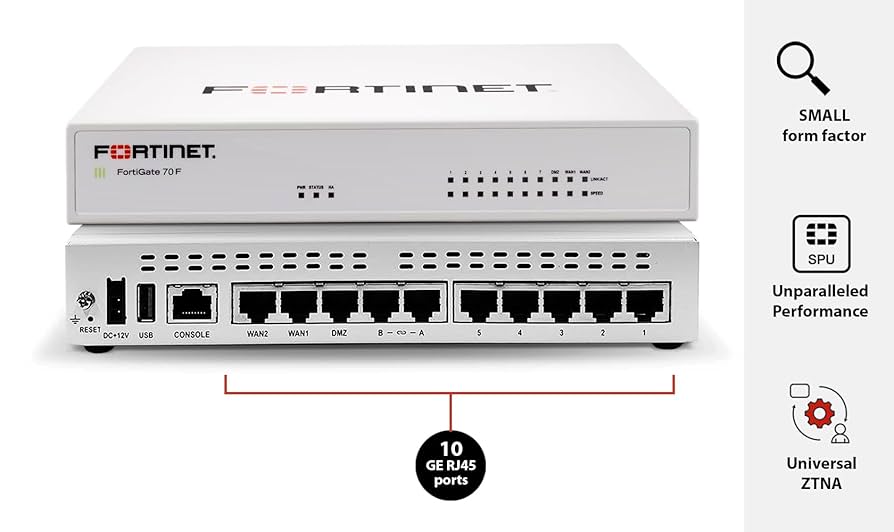

The FortiGate 70F is a high-performance, fanless desktop Next-Generation Firewall (NGFW) designed for branch offices and mid-sized businesses. It delivers advanced security, SD-WAN, and networking features in a compact, energy-efficient form factor. Built on Fortinet's patented SD-WAN ASIC and SPU accelerator architecture, it offers low latency and high throughput at a lower cost and power consumption compared to traditional CPU-based designs. Powered by FortiOS, the device integrates AI-driven FortiGuard Security Services within the Fortinet Security Fabric, offering streamlined network and threat protection management. The SOC4 architecture combines ARMv8 multi-core CPU with FortiASIC NP6XLITE network processor for optimal performance. Featuring 7 GE RJ45 internal LAN ports, 2 GE RJ45 WAN ports, and 1 GE RJ45 DMZ port, the FortiGate 70F provides flexible connectivity options for diverse network topologies. The fanless design ensures silent operation while maintaining high reliability, making it perfect for office environments where noise is a concern. Available in Kuwait with expert installation, configuration, and ongoing support services. Trusted by businesses across the Middle East for reliable technology solutions.

Specifications

RAM:~3.7 GB
MTBF:High reliability
SD-WAN:Secure SD-WAN with application-aware routing and overlay performance optimization
Weight:~1.01 kg (2.23 lb)
SSL/TLS:Deep SSL Inspection including TLS 1.3
Storage:~3.7 GB eMMC
DMZ Ports:1x GE RJ45
LAN Ports:7x GE RJ45
Processor:ARMv8 multi-core CPU + FortiASIC NP6XLITE
WAN Ports:2x GE RJ45
Dimensions:38.5 × 216 × 160 mm (1.5 × 8.5 × 6.3 in)
Management:Fortinet Security Fabric, Zero-touch provisioning, FortiManager, FortiCloud
Form Factor:Compact, fanless desktop
Power Input:12 V DC adapter
Total Ports:10x GE RJ45
Architecture:SOC4 (SD-WAN ASIC + SPU accelerator)
Firewall PPS:~9 Mpps
IPS Throughput:Up to 1.4 Gbps
NGFW Throughput:Up to 1 Gbps
Storage Humidity:10% to 90% non-condensing
Power Consumption:~17-18 W
Security Features:FortiGuard AI/ML-powered Security Services, IPS, Antivirus, Web/App Control, Sandboxing, URL Filtering, DLP
FortiToken Support:Up to 500 tokens
HA Modes Available:Active-Active, Active-Passive, Clustering
SSL-VPN Throughput:~900 Mbps
FortiSwitch Support:Up to 24 switches
New TCP Sessions/sec:~35,000
Operating Temperature:0°C to 40°C
Concurrent TCP Sessions:~700,000
Virtual Domains (VDOMs):Up to 10
Firewall Policy Capacity:~5,000 policies
CAPWAP Throughput (HTTP 64K):~8 Gbps
Max Concurrent SSL-VPN Users:~200 (tunnel mode)
SSL Inspection CPS & Sessions:~400 CPS, ~55,000 sessions
Firewall Latency (64-byte UDP):~3.3 μs
Client-to-Gateway IPSec Tunnels:500
IPsec VPN Throughput (512-byte):~6.5 Gbps
SSL Inspection (VPN) Throughput:~6.5 Gbps
FortiAP Support (Total / Tunnel):Up to 64 / 32 devices
Gateway-to-Gateway IPSec Tunnels:200
App Control Throughput (HTTP 64K):~1.8 Gbps
Firewall Throughput (64-byte UDP):~6 Gbps
Threat Protection (UTM) Throughput:Up to 800 Mbps
Firewall Throughput (1518-byte UDP):~10 Gbps
SSL Inspection Throughput (HTTPS avg):~630 Mbps

Key Features

Next-Generation Firewall (NGFW)

Secure SD-WAN with application-aware routing

FortiGuard AI/ML-powered security services

Deep SSL Inspection including TLS 1.3

Integrated IPS (Intrusion Prevention System)

Anti-malware protection

Application Control (AVC)

Web Filtering and URL Filtering

Sandboxing capabilities

Data Loss Prevention (DLP)

Overlay performance optimization

Fortinet Security Fabric Integration

Zero-touch provisioning

Cloud management via FortiCloud

Centralized management via FortiManager

Fanless design for silent operation

High reliability with excellent MTBF

Compact desktop form factor

Energy-efficient operation

SOC4 architecture with SPU acceleration

Low latency and high throughput

Cost-effective performance

Related Products

Other products with professional installation services

Fortinet

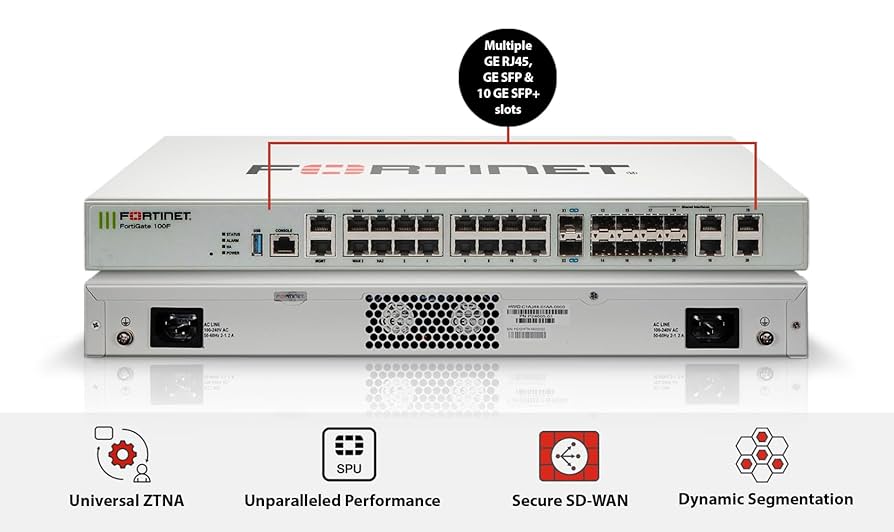

FortiGate 100F Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet
FortiGate 101F Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet

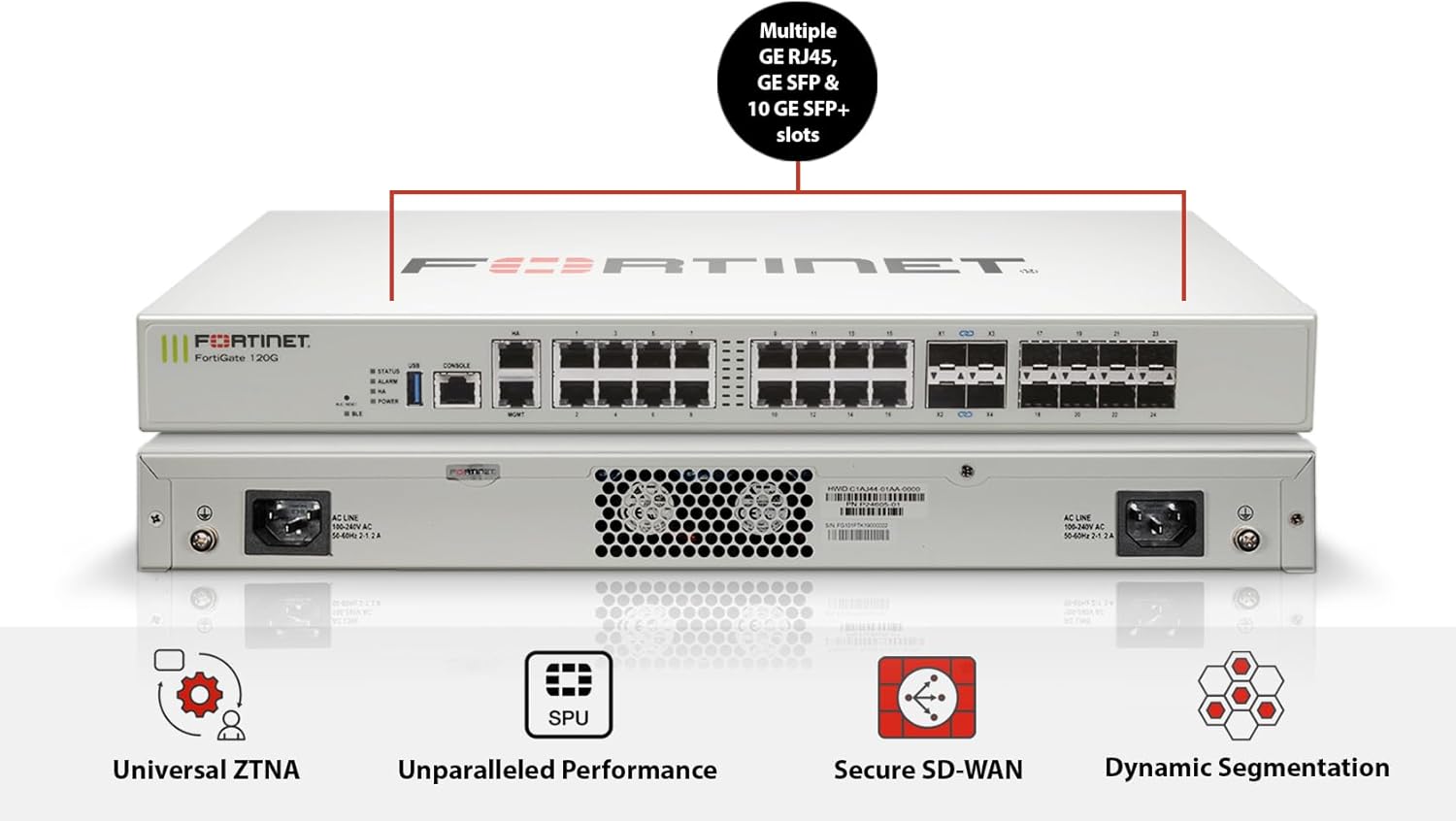

FortiGate 120G Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet

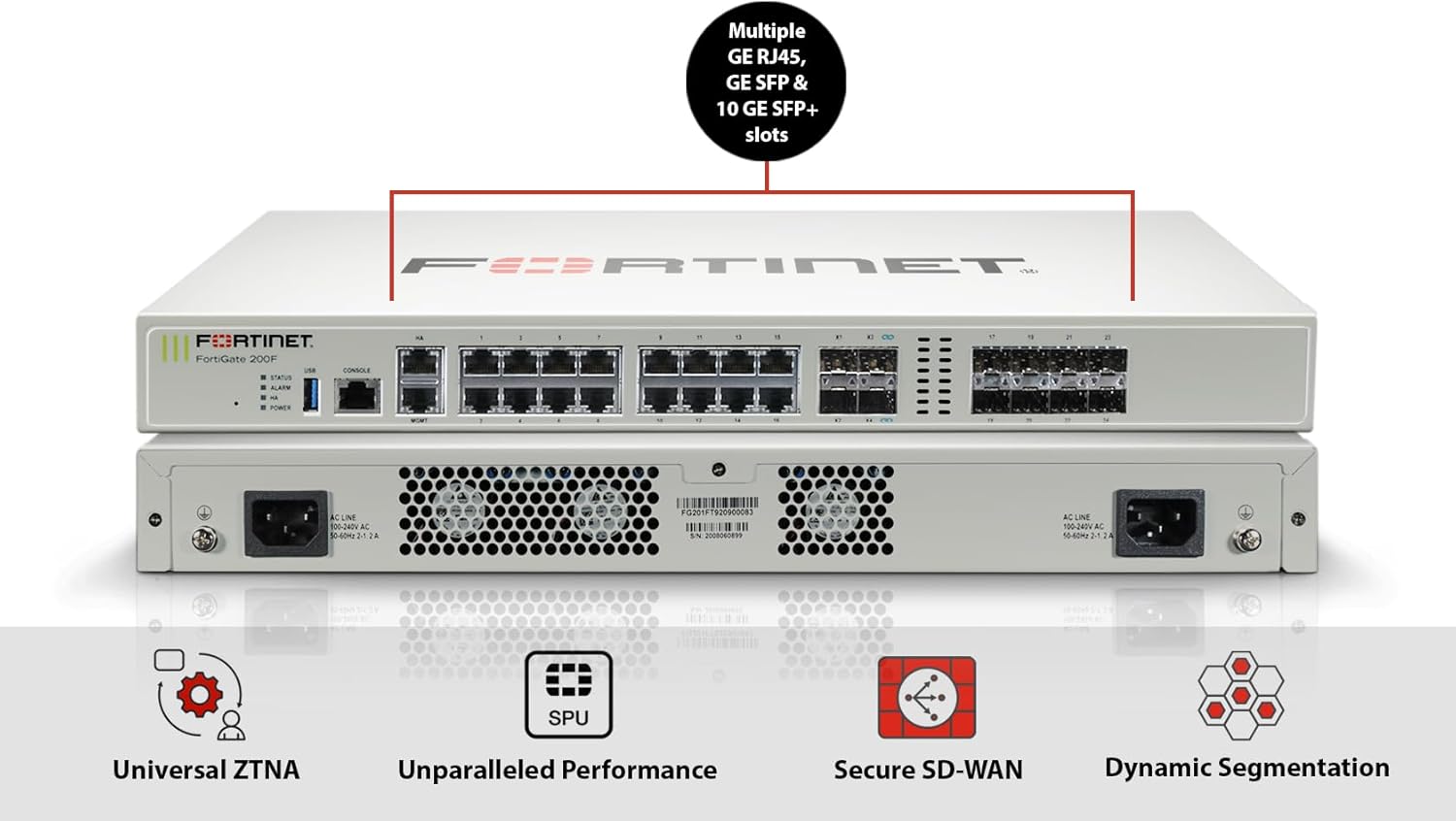

FortiGate 200F Next-Generation Firewall
