FortiGate 80F-Bypass Next-Generation Firewall

Loading...

FortiGate 80F-Bypass Next-Generation Firewall
Fortinet
Next-Generation Firewall (NGFW)
FG-80F-Bypass

Bypass variant of the FortiGate 80F designed to enhance network reliability and uptime. Features WAN/LAN bypass pair for improved network resilience.

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation
Office Installation
Enterprise Setup
Technical Support

Installation Services for FortiGate 80F-Bypass Next-Generation Firewall

Our expert team provides comprehensive installation services for this product across all environments

Home Installation
Professional installation services for residential environments, ensuring optimal performance for your home network.
Office Installation
Complete office network installation with advanced configuration, security, and performance optimization for business environments.
Enterprise Installation
Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.
Technical Support
Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

The FortiGate 80F-Bypass is a specialized variant of the FortiGate 80F designed to enhance network reliability and uptime. It maintains all the high-performance security and SD-WAN capabilities of the standard 80F while adding bypass functionality for improved network resilience. Built on the same ASIC-based SOC4 architecture with RISC CPU core and Fortinet's SPU processors, the FG-80F-Bypass delivers the same impressive performance metrics while offering enhanced reliability through bypass capabilities. The bypass feature ensures network continuity even during maintenance or device failures. Perfect for critical network environments where uptime is essential, such as financial institutions, healthcare facilities, and mission-critical business operations. The bypass functionality provides seamless failover without service interruption. Available in Kuwait with expert installation, configuration, and ongoing support services. Trusted by businesses across the Middle East for reliable technology solutions.

Specifications

SD-WAN:Application-aware routing, dynamic WAN path steering, real-time analytics
Weight:~1.1 kg (2.4 lb)
LAN Ports:6x GE RJ45
USB Ports:1x USB 3.0 (for 3G/4G modem)
WAN Ports:2x GE RJ45/SFP shared
Deployment:Zero-touch deployment
Dimensions:40 × 216 × 178 mm (1.6 × 8.5 × 7.0 in)
Management:FortiOS, FortiManager, FortiCloud, Security Fabric Integration
Form Factor:Fanless desktop/wall-mount/rack-tray adaptable
Reliability:High reliability with excellent MTBF and bypass protection

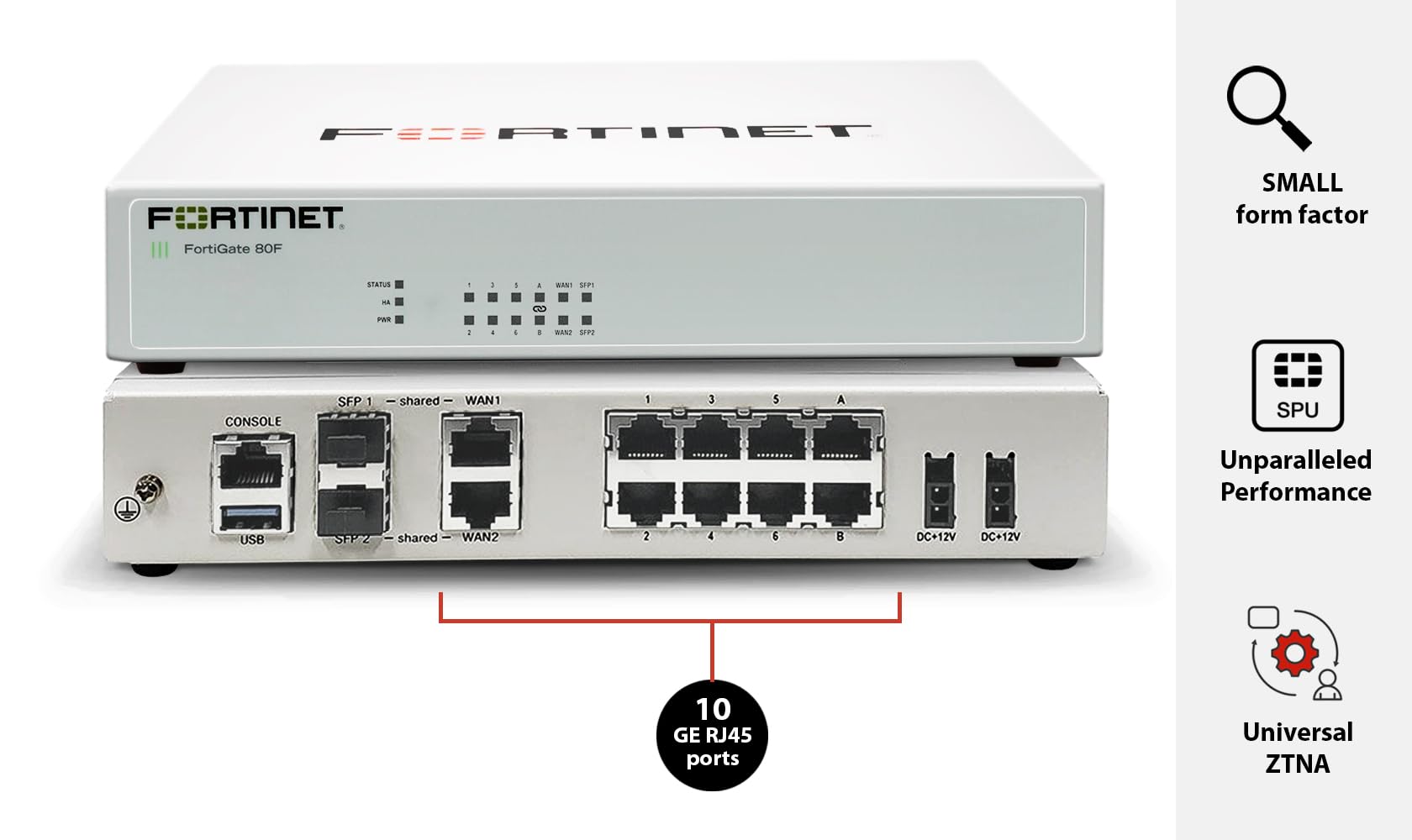

Total Ports:10x GE RJ45 + 1x USB 3.0 + 1x Console + Bypass
Architecture:ASIC-based SOC4 (RISC CPU + SPU)
Bypass Ports:WAN/LAN bypass pair
Console Ports:1x RJ45
IPS Throughput:1.4 Gbps
FortiLink Ports:2x GE RJ45
NGFW Throughput:1.0 Gbps
Firewall Latency:3.23 μs
New Sessions/sec:45,000
Storage Humidity:10% to 90% non-condensing
Power Consumption:Low power consumption
Security Features:FortiGuard AI/ML Services, IPS, Anti-malware, Application Control, Web Filtering, Sandboxing, DLP
SSL VPN Throughput:950 Mbps
Bypass Functionality:WAN/LAN bypass pair for enhanced reliability
Max FortiAPs Support:96 devices
Operating Temperature:0°C to 40°C
App Control Throughput:1.8 Gbps
Max FortiTokens Support:500 tokens
Virtual Domains (VDOMs):10
Concurrent Sessions (TCP):1.5 million
Max FortiSwitches Support:24 switches
Firewall Policies Supported:~5,000
IPsec VPN Throughput (512-byte):6.5 Gbps
Gateway-to-Gateway IPsec Tunnels:200
Firewall Throughput (UDP 64 bytes):10 Gbps
Threat Protection (UTM) Throughput:900 Mbps
Client-to-Gateway IPsec VPN Tunnels:2,500
Firewall Throughput (UDP 512 bytes):10 Gbps
Firewall Throughput (UDP 1518 bytes):10 Gbps
SSL Inspection Throughput (HTTPS avg.):715 Mbps

Key Features

Next-Generation Firewall (NGFW)

WAN/LAN bypass functionality

Enhanced network reliability

Advanced SD-WAN features

FortiGuard AI/ML-powered protection

Deep security capabilities

Security Fabric Integration

ASIC-based SOC4 architecture

RISC CPU + SPU processors

Deep SSL inspection

Integrated IPS (Intrusion Prevention System)

Anti-malware protection

Application Control (AVC)

Web Filtering and URL Filtering

Sandboxing capabilities

Data Loss Prevention (DLP)

Threat Protection (UTM)

SD-WAN orchestration

Application-aware routing

Dynamic WAN path steering

Real-time analytics

Zero-touch deployment

Cloud management via FortiCloud

Centralized management via FortiManager

Fanless design for silent operation

High reliability with excellent MTBF

Flexible mounting options

USB 3.0 for 3G/4G backup

FortiLink integration

Low latency performance

High throughput performance

Energy efficient operation

Bypass protection for uptime
