FortiGate 80F Next-Generation Firewall

Loading...

FortiGate 80F Next-Generation Firewall
Fortinet
Next-Generation Firewall (NGFW)
FG-80F

Compact, fanless Next-Generation Firewall (NGFW) designed for branch offices and mid-sized businesses. Features advanced SD-WAN, deep security, and FortiGuard AI-powered protection within Fortinet's intelligent Security Fabric.

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation
Office Installation
Enterprise Setup
Technical Support

Installation Services for FortiGate 80F Next-Generation Firewall

Our expert team provides comprehensive installation services for this product across all environments

Home Installation
Professional installation services for residential environments, ensuring optimal performance for your home network.
Office Installation
Complete office network installation with advanced configuration, security, and performance optimization for business environments.
Enterprise Installation
Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.
Technical Support
Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

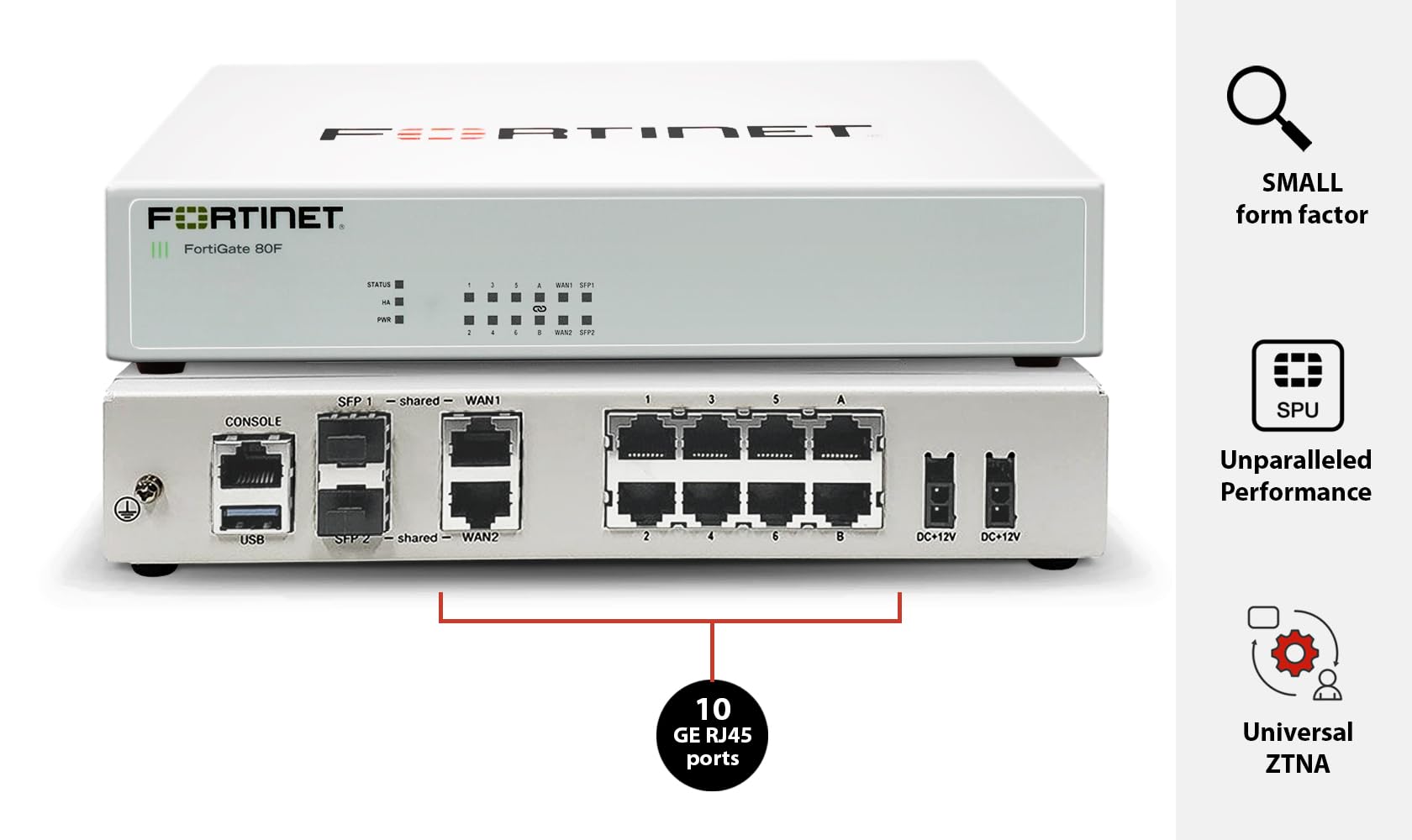

The FortiGate 80F Series is a compact, fanless Next-Generation Firewall (NGFW) designed for branch offices and mid-sized businesses. It embeds advanced SD-WAN features, deep security, and FortiGuard AI-powered protection—all within Fortinet's intelligent Security Fabric. Powered by purpose-built SD-WAN ASIC and SPU architecture, it delivers superior performance, efficiency, and low latency without excessive power consumption. Featuring 2 GE RJ45/SFP shared WAN ports, 6 GE RJ45 internal LAN ports, and 2 GE RJ45 FortiLink ports, the FortiGate 80F provides flexible connectivity options for diverse network topologies. The fanless design ensures silent operation while maintaining high reliability, making it perfect for office environments where noise is a concern. With support for 1.5 million concurrent sessions and 2,500 VPN tunnels, the FortiGate 80F is ideal for growing branch environments requiring massive scale and robust protection. The ASIC-based SOC4 design combines RISC CPU core with Fortinet's SPU processors for accelerated networking and security workflows. Available in Kuwait with expert installation, configuration, and ongoing support services. Trusted by businesses across the Middle East for reliable technology solutions.

Specifications

SD-WAN:Application-aware routing, dynamic WAN path steering, real-time analytics
Weight:~1.1 kg (2.4 lb)
LAN Ports:6x GE RJ45
USB Ports:1x USB 3.0 (for 3G/4G modem)
WAN Ports:2x GE RJ45/SFP shared
Deployment:Zero-touch deployment
Dimensions:40 × 216 × 178 mm (1.6 × 8.5 × 7.0 in)
Management:FortiOS, FortiManager, FortiCloud, Security Fabric Integration
Form Factor:Fanless desktop/wall-mount/rack-tray adaptable
Reliability:High reliability with excellent MTBF
Total Ports:10x GE RJ45 + 1x USB 3.0 + 1x Console
Architecture:ASIC-based SOC4 (RISC CPU + SPU)
Console Ports:1x RJ45
IPS Throughput:1.4 Gbps
FortiLink Ports:2x GE RJ45
NGFW Throughput:1.0 Gbps
Firewall Latency:3.23 μs
New Sessions/sec:45,000
Storage Humidity:10% to 90% non-condensing
Power Consumption:Low power consumption
Security Features:FortiGuard AI/ML Services, IPS, Anti-malware, Application Control, Web Filtering, Sandboxing, DLP
SSL VPN Throughput:950 Mbps
Max FortiAPs Support:96 devices
Operating Temperature:0°C to 40°C
App Control Throughput:1.8 Gbps
Max FortiTokens Support:500 tokens
Virtual Domains (VDOMs):10
Concurrent Sessions (TCP):1.5 million
Max FortiSwitches Support:24 switches
Firewall Policies Supported:~5,000
IPsec VPN Throughput (512-byte):6.5 Gbps
Gateway-to-Gateway IPsec Tunnels:200
Firewall Throughput (UDP 64 bytes):10 Gbps
Threat Protection (UTM) Throughput:900 Mbps
Client-to-Gateway IPsec VPN Tunnels:2,500
Firewall Throughput (UDP 512 bytes):10 Gbps
Firewall Throughput (UDP 1518 bytes):10 Gbps
SSL Inspection Throughput (HTTPS avg.):715 Mbps

Key Features

Next-Generation Firewall (NGFW)

Advanced SD-WAN features

FortiGuard AI/ML-powered protection

Deep security capabilities

Security Fabric Integration

ASIC-based SOC4 architecture

RISC CPU + SPU processors

Deep SSL inspection

Integrated IPS (Intrusion Prevention System)

Anti-malware protection

Application Control (AVC)

Web Filtering and URL Filtering

Sandboxing capabilities

Data Loss Prevention (DLP)

Threat Protection (UTM)

SD-WAN orchestration

Application-aware routing

Dynamic WAN path steering

Real-time analytics

Zero-touch deployment

Cloud management via FortiCloud

Centralized management via FortiManager

Fanless design for silent operation

High reliability with excellent MTBF

Flexible mounting options

USB 3.0 for 3G/4G backup

FortiLink integration

Low latency performance

High throughput performance

Energy efficient operation
